Braille and Safety Signs

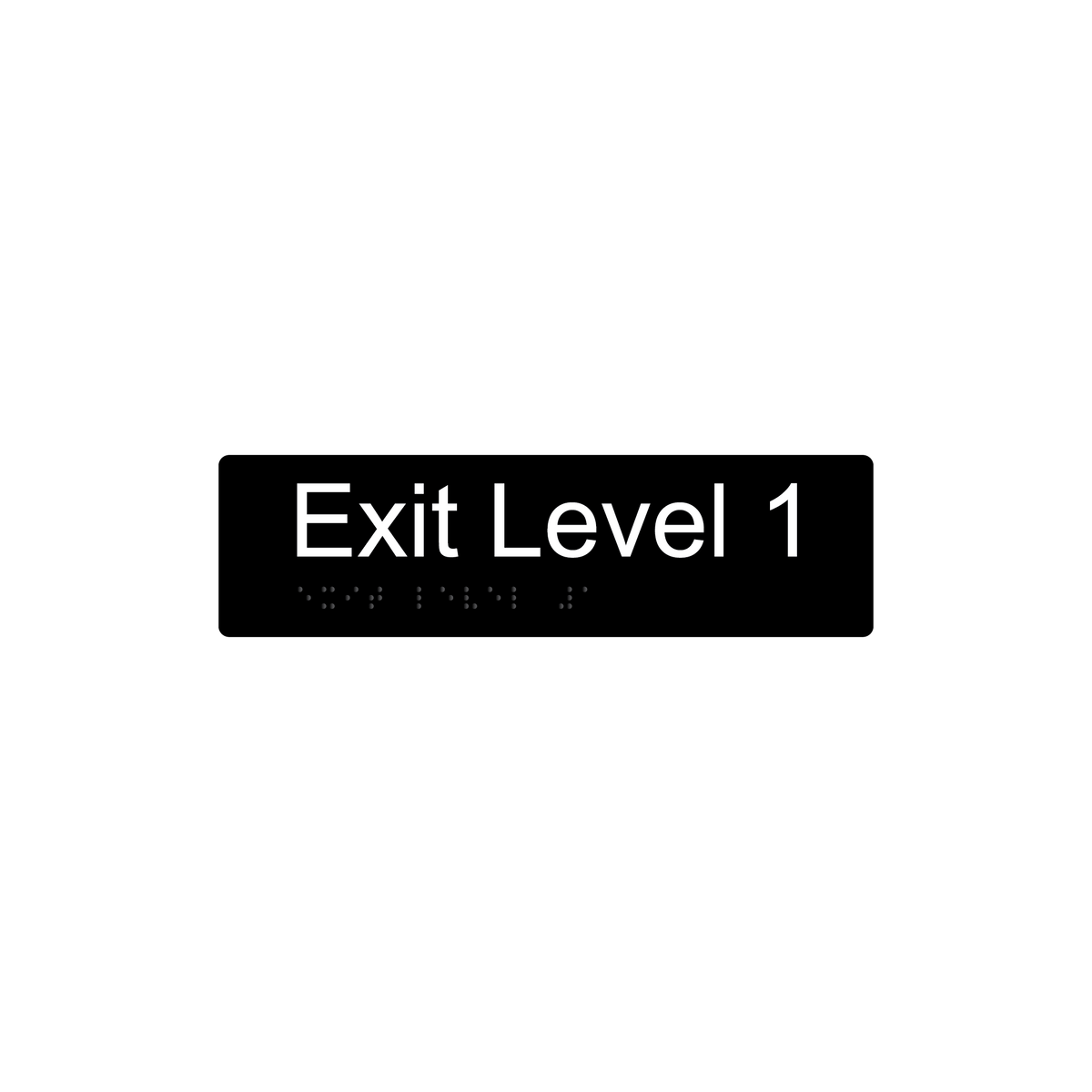

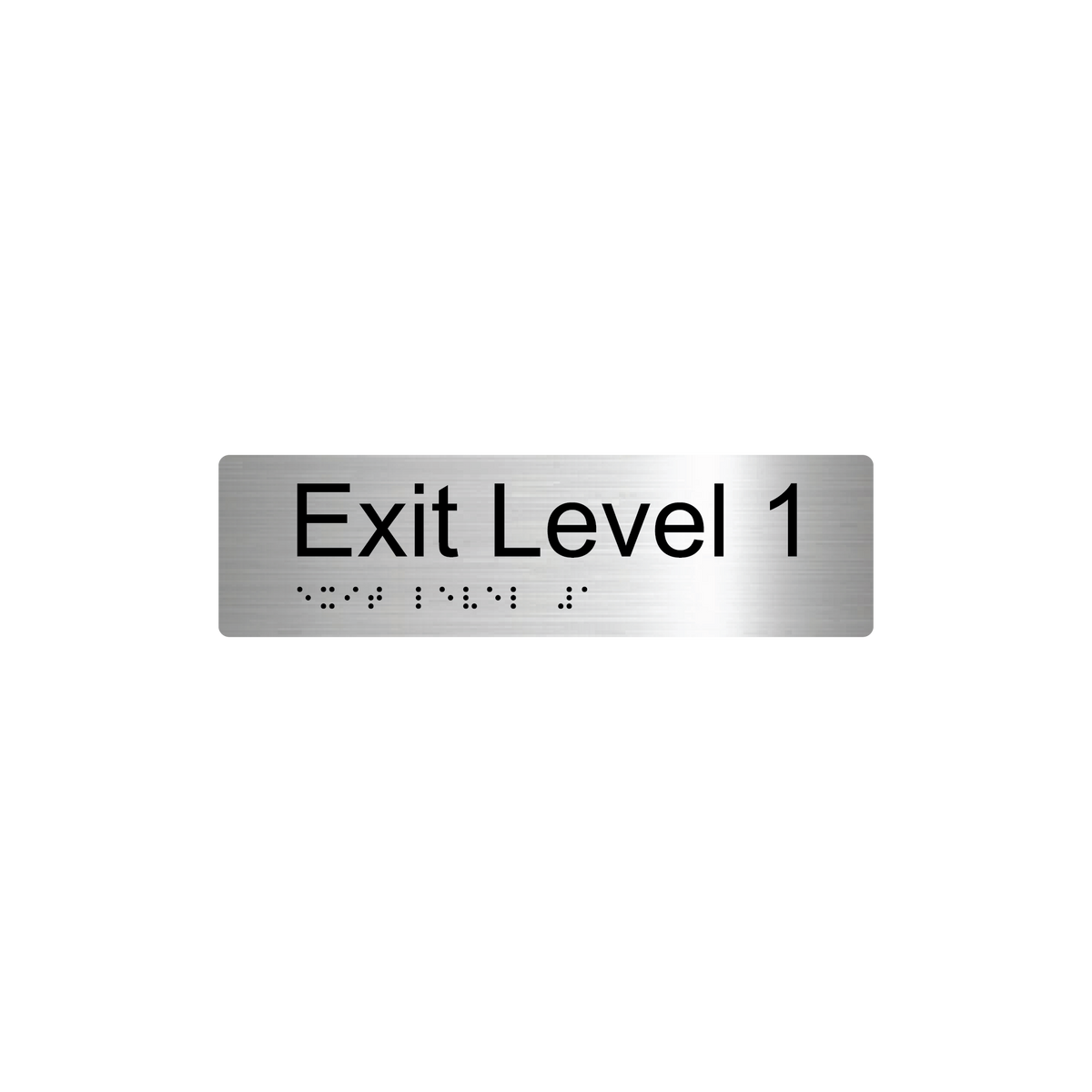

Exit Level 1 Braille Sign - AS1428.1 Compliant

Exit Level 1 Braille Sign - AS1428.1 Compliant

$39.95 AUD
$39.95 AUD
Sale Sold out
Shipping calculated at checkout.
Material

• Compliance Standard: Compliant with Australian Standard AS1428.1 & NCC Specifications.
• Material Options: Available in Premium UV-Stabilised Acrylic or Stainless Steel.
• Plate Dimensions: 180mm x 50mm Rectangular Profile.
• Tactile Integration: Solid Raised Text, Architectural Borders, and Grade 1 UEB Braille.

Architectural Specification Exit Level 1 Braille & Tactile Sign

Compliant statutory wayfinding sign marking Exit Level 1 egress pathways for commercial office, education, and public infrastructure projects.

View full details

AS1428.1 Compliance Walkthrough

To satisfy Australian certifier handover , this tactile sign must be permanently fixed on the latch side of the door. The baseline of all raised tactile elements must sit accurately between 1200mm and 1600mm above the finished floor level (FFL).For comprehensive mounting diagrams, dimensional variances, and step-by-step surface preparation details, access our official installation guide.

Premium Commercial Finishes

Available in high-durability UV-stabilised Matte Acrylic or Marine-Grade 316 Stainless Steel. Low-reflection surface treatments deliver maximum visual contrast and fulfill strict visual contrast compliance mandates.

Factory-Fitted 3M Backing

Skip complex drilling. All architectural sign plates are supplied fully pre-fitted with premium, heavy-duty 3M double-sided adhesive backing tape for permanent, flush visual integration onto glass or timber.
